Product Overview

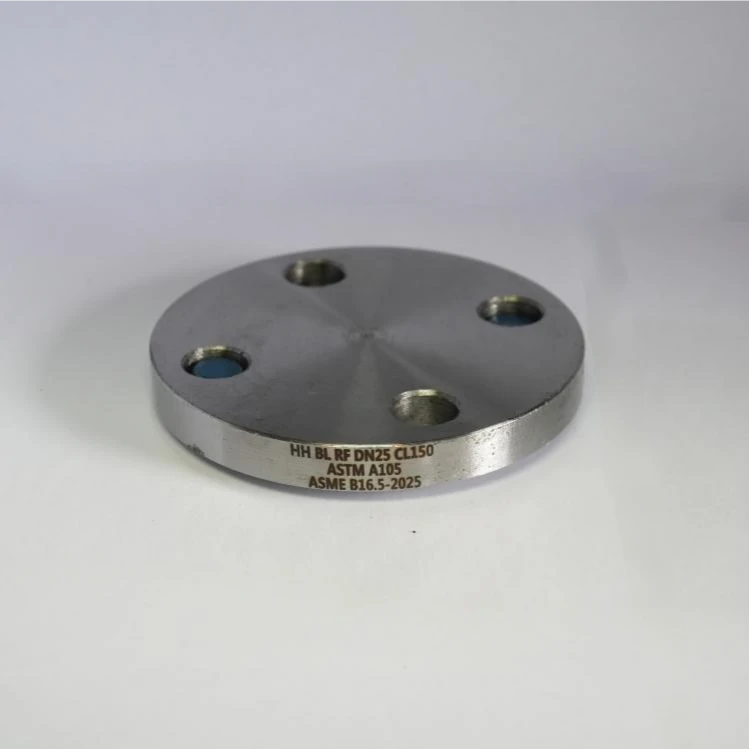

Qhov muag tsis pom Flange, cov yeeb nkab haum ua raws li ASME B16.5, feem ntau yog siv los thaiv cov kav dej los yog cais cov kav dej. Forged nyob rau hauv cov txheej txheem, nws yog dav siv nyob rau hauv roj av, tshuaj, roj, fais fab, nkoj tsim, nroog thiab lwm yam lag luam. Featuring zoo sealing, siab thiab corrosion kuj, nws ua kom ntseeg tau kaw nyob rau hauv siab -siab thiab siab - kub.
Khoom Parameters
|
Parameter |
Specification |
|
Execution Standard |
ASME B16.5 |
|
Hom / Qauv |
Forged, dig muag flange |
|
Specification Range |
1/2" - 24" |
|
Kev ntsuas siab |
CL150, CL300, CL600, CL900, CL1500, CL2500 |
|
Hom kev sib txuas |
Bolted kev twb kev txuas |
|
Kev kho saum npoo |
Cov roj tiv thaiv xeb, kub -dip galvanizing |
|
Yam khoom |
Carbon Steel, Stainless hlau, Alloy hlau |
|
Ntim Txoj Kev |
Ntoo crate los yog pallets |
|
Muaj peev xwm muab khoom |
2000 tons / hli |
Technical Diagram
ASME B16.5
Kwv yees qhov hnyav ntawm qhov muag tsis pom flanges (Kg)
|
SIZE |
Nominal Siab |
||||||
|
DN |
NPS |
Chav Kawm 150 |
Chav Kawm 300 |
Chav Kawm 600 |
Chav Kawm 900 |
Chav Kawm 1500 |
Chav Kawm 2500 |
|
15 |
1/2" |
0.43 |
0.63 |
0.77 |
1.78 |
1.78 |
3.11 |
|
20 |
3/4" |
0.63 |
1.15 |
1.37 |
2.43 |
2.43 |
3.56 |
|
25 |
1" |
0.89 |
1.4 |
1.66 |
3.65 |
3.65 |
5.05 |
|
32 |
1-1/4" |
1.2 |
1.88 |
2.36 |
4.27 |
4.27 |
7.47 |
|
40 |
1-1/2" |
1.58 |
2.65 |
3.29 |
5.93 |
5.93 |
10.6 |
|
50 |
2" |
2.39 |
3.22 |
4.24 |
10 |
10 |
15.5 |
|
65 |
2-1/2" |
4.07 |
4.8 |
6.23 |
14 |
14 |
22.4 |
|
80 |
3" |
4.92 |
6.89 |
8.63 |
13.1 |
19 |
34.9 |
|
100 |
4" |
7.13 |
11.6 |
17.7 |
21.8 |
29.7 |
53.8 |
|
125 |
5" |
8.92 |
15.6 |
29.4 |
36.8 |
58.8 |
91.5 |
|
150 |
6" |
11.4 |
21.4 |
36.2 |
47.5 |
72.5 |
142.5 |
|
200 |
8" |
20.1 |
334.1 |
59.1 |
82.4 |
122.7 |
211.5 |
|
250 |
10" |
28.7 |
53.5 |
98.4 |
122.2 |
211.5 |
412.6 |
|
300 |
12" |
43.8 |
78.3 |
125.3 |
173.7 |
317.4 |
588.2 |
|
350 |
14" |
58.2 |
105 |
152.1 |
205.7 |
422.7 |
|
|
400 |
16" |
77.4 |
138.6 |
214.1 |
259.9 |
557.2 |
|
|
450 |
18" |
94 |
174.3 |
275.4 |
366.9 |
760.6 |
|
|
500 |
20" |
122.7 |
220.4 |
352.4 |
461 |
966.6 |
|
|
550 |
22" |
150.7 |
268.7 |
428.5 |
|||
|
600 |
24" |
187 |
339 |
536.8 |
874 |
1560 |
|
Khoom zoo
Standard Compliance & High Reliability
Tsim los ntawm ASME B16.5, theqhov muag tsis pom flangexyuas kom meej qhov ntev, ruaj khov cov khoom siv, thiab xoom- qhov dej kaw, ua tau raws li kev sib khi nruj thiab kev ua haujlwm siab ntawm ntau yam xwm txheej.
Ntau hom khoom xaiv
Covqhov muag tsis pom flangemuaj cov khoom siv nplua nuj xaiv (carbon steel, stainless hlau, hlau alloy) kom hloov mus rau ntau yam xov xwm (roj, roj, dej, chav dej, corrosive kua) thiab hnyav ua hauj lwm tej yam kev mob (siab kub, siab, corrosion kuj).
Superior Processing & Durability
The forged blind flange features higher density, strength, and toughness than cast alternatives, enabling long-term, reliable operation in harsh industrial environments.
Cov ntawv thov tseem ceeb
Petroleum & Natural Gas
Qhov muag tsis pom flangeseals thiab cais lub taub hau, sib sau ua ke, compressor, thiab valve chaw nres tsheb cov kav dej, ua kom muaj kev ruaj ntseg siab - roj thiab roj system.
01
Tshuaj & Lub Zog
Qhov muag tsis pom flangecais cov reactors, cua kub exchangers, thiab boilers, ua kom muaj kev ruaj ntseg ntawm siab - kub, corrosive pipelines.
02
Shipbuilding & Marine
Qhov muag tsis pom flangeresists seawater corrosion nyob rau hauv ballast, roj, thiab hluav taws systems, ruaj marine pipeline kev khiav dej num.
03
Municipal & Civil
Qhov muag tsis pom flangecais dej, cua sov, roj, thiab hluav taws cov kav dej rau kev tu, txhawb kev ua haujlwm ruaj khov rau pej xeem.
04
